Binary semantic segmentation

Image segmentation, or semantic segmentation, is the task of classifying each pixel within an image with a corresponding class.

Google Colab

from fastMONAI.vision_all import *

from monai.apps import DecathlonDataset
from sklearn.model_selection import train_test_split

Download external data

We use the MONAI function DecathlonDataset to download the data and generate items for training.

path = Path('../data')
path.mkdir(exist_ok=True)

training_data = DecathlonDataset(root_dir=path, task="Task02_Heart", section="training",
    download=True, cache_num=0, num_workers=3)

Task02_Heart.tar: 435MB [05:11, 1.46MB/s]

2023-01-18 08:33:46,957 - INFO - Downloaded: ../data/Task02_Heart.tar
2023-01-18 08:33:47,618 - INFO - Verified 'Task02_Heart.tar', md5: 06ee59366e1e5124267b774dbd654057.
2023-01-18 08:33:47,618 - INFO - Non-empty folder exists in ../data/Task02_Heart, skipped extracting.

df = pd.DataFrame(training_data.data)
df.shape

(16, 2)

Split the labled data into training and test

train_df, test_df = train_test_split(df, test_size=0.1, random_state=42)
train_df.shape, test_df.shape

((14, 2), (2, 2))

Look at training data

Each class label will be counted for the masks (including the background) if you pass in the mask path and define the dtype to be MedMask in MedDataset

med_dataset = MedDataset(img_list=train_df.label.tolist(), dtype=MedMask, max_workers=12)

med_dataset.df.head()

	path	dim_0	dim_1	dim_2	voxel_0	voxel_1	voxel_2	orientation	voxel_count_0	voxel_count_1
0	../data/Task02_Heart/labelsTr/la_023.nii.gz	320	320	110	1.25	1.25	1.37	RAS+	11220796	43204
1	../data/Task02_Heart/labelsTr/la_004.nii.gz	320	320	110	1.25	1.25	1.37	RAS+	11205525	58475
2	../data/Task02_Heart/labelsTr/la_007.nii.gz	320	320	130	1.25	1.25	1.37	RAS+	13256556	55444
3	../data/Task02_Heart/labelsTr/la_022.nii.gz	320	320	110	1.25	1.25	1.37	RAS+	11230449	33551
4	../data/Task02_Heart/labelsTr/la_011.nii.gz	320	320	120	1.25	1.25	1.37	RAS+	12229545	58455

data_info_df = med_dataset.summary()

data_info_df.head()

	dim_0	dim_1	dim_2	voxel_0	voxel_1	voxel_2	orientation	example_path	total
3	320	320	110	1.25	1.25	1.37	RAS+	../data/Task02_Heart/labelsTr/la_004.nii.gz	4
4	320	320	120	1.25	1.25	1.37	RAS+	../data/Task02_Heart/labelsTr/la_005.nii.gz	4
1	320	320	100	1.25	1.25	1.37	RAS+	../data/Task02_Heart/labelsTr/la_009.nii.gz	2
0	320	320	90	1.25	1.25	1.37	RAS+	../data/Task02_Heart/labelsTr/la_016.nii.gz	1
2	320	320	109	1.25	1.25	1.37	RAS+	../data/Task02_Heart/labelsTr/la_029.nii.gz	1

resample, reorder = med_dataset.suggestion()
resample, reorder

([1.25, 1.25, 1.37], False)

bs=4

img_size = med_dataset.get_largest_img_size(resample=resample)
img_size

[320.0, 320.0, 130.0]

size = [160,160,128]

item_tfms = [ZNormalization(), PadOrCrop(size), RandomAffine(scales=0, degrees=5)]  # RandomMotion()

dblock = MedDataBlock(blocks=(ImageBlock(cls=MedImage), MedMaskBlock),
                      splitter=RandomSplitter(valid_pct=0.1, seed=42), # By passing valid_pct=0.1, we tell it to get a random 10% of the training set for validation.
                      get_x=ColReader('image'),
                      get_y=ColReader('label'),
                      item_tfms=item_tfms,
                      reorder=reorder,
                      resample=resample)

dls = dblock.dataloaders(train_df, bs=bs)

# training and validation
len(dls.train_ds.items), len(dls.valid_ds.items)

(13, 1)

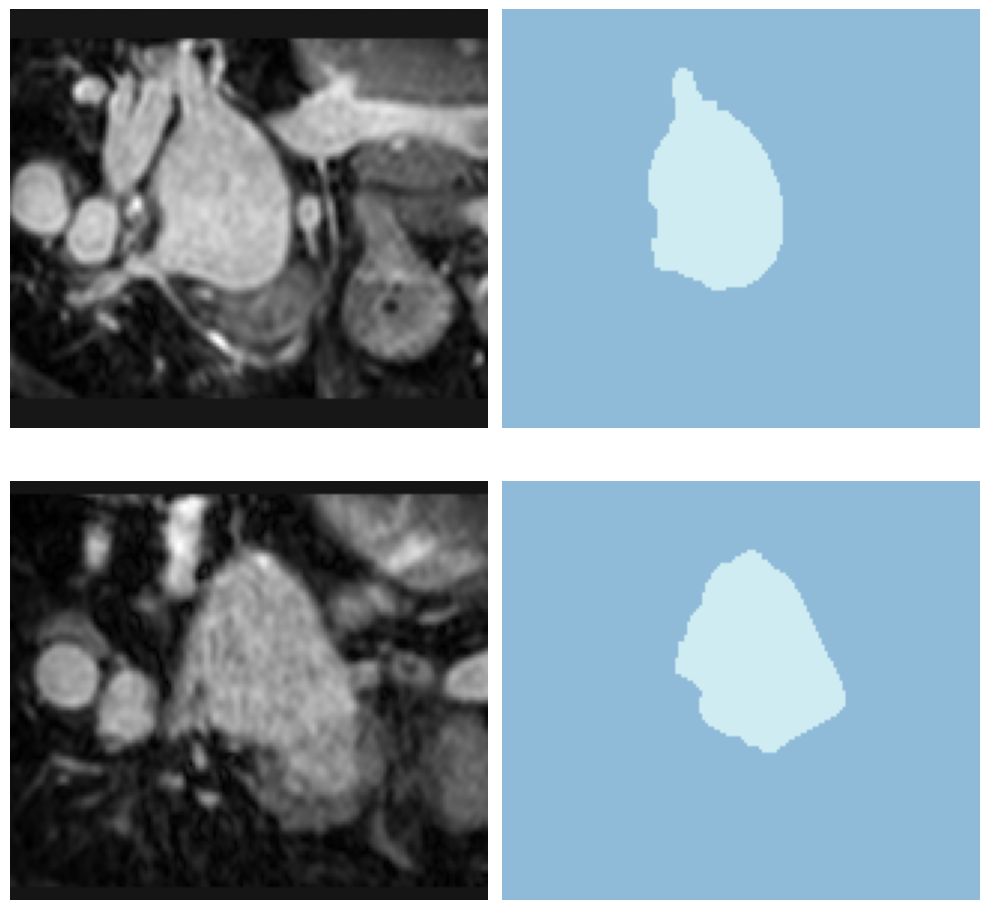

dls.show_batch(anatomical_plane=2)

Create and train a 3D model

The current state-of-the-art CNN models for medical image segmentation tasks are based on encoder-decoder architectures like the U-Net. In the following line, we import an enhanced version of 3D UNet from MONAI. In addition, we import the Dice coefficient (Dice) loss, a commonly used loss function in medical image segmentation tasks: \[\begin{equation*} \begin{aligned} loss = 1- \frac{y \cap \hat{y}}{\left | y \right |+\left | \hat{y} \right |} \end{aligned} \end{equation*}\]

from monai.networks.nets import UNet
from monai.losses import DiceLoss

model = UNet(spatial_dims=3, in_channels=1, out_channels=1, channels=(16, 32, 64, 128, 256),strides=(2, 2, 2, 2), num_res_units=2)
model = model.model

loss_func = CustomLoss(loss_func=DiceLoss(sigmoid=True))

We use a built-in ranger optimizer from fastai, that combines (RAdam + Lookahead) into a single optimizer. Ranger21 tested with fastai available: https://github.com/lessw2020/Ranger21

learn = Learner(dls, model, loss_func=loss_func, opt_func=ranger, metrics=binary_dice_score)

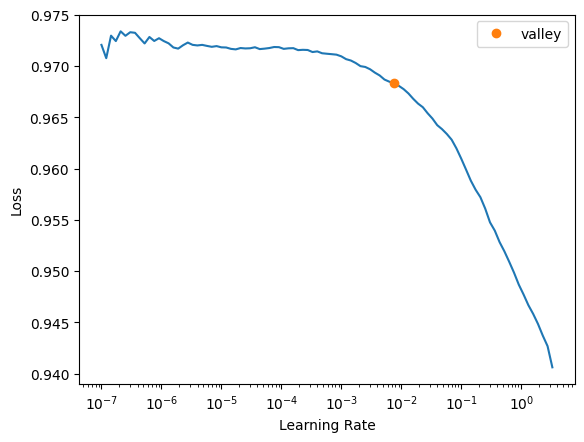

learn.lr_find()

SuggestedLRs(valley=0.009120108559727669)

lr = 1e-2

As shown in https://walkwithfastai.com/Segmentation, with the ranger optimizer, we want to use a different fit function, called fit_flat_cos

learn.fit_flat_cos(200 ,lr)

learn.recorder.plot_loss()

learn.save('heart-model')

Path('models/heart-model.pth')

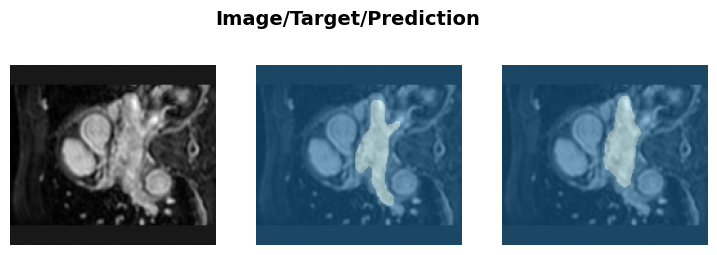

learn.show_results(anatomical_plane=1)

Test data (with labels to evaulate the model)

Evaluate the performance of the selected model on unseen data. It’s important to not touch this data until you have fine tuned your model to get an unbiased evaluation!

learn.load('heart-model');

test_dl = learn.dls.test_dl(test_df,with_labels=True)

test_dl.show_batch(anatomical_plane=0, figsize=(10,10))

pred_acts, labels = learn.get_preds(dl=test_dl)
pred_acts.shape, labels.shape

(torch.Size([2, 1, 160, 160, 128]), torch.Size([2, 1, 160, 160, 128]))

binary_dice_score(pred_acts, labels)

tensor(0.8893)

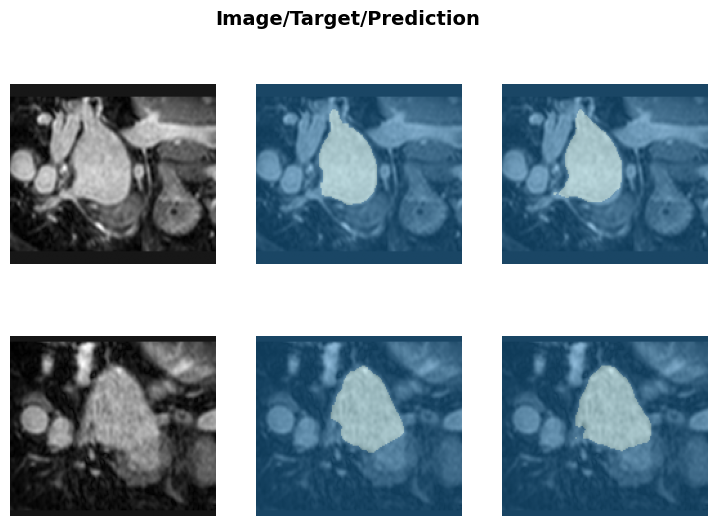

learn.show_results(anatomical_plane=0, dl=test_dl)

Export learner

store_variables(pkl_fn='vars.pkl', size=size, reorder=reorder,  resample=resample)

learn.export('heart_model.pkl')
